D-Link

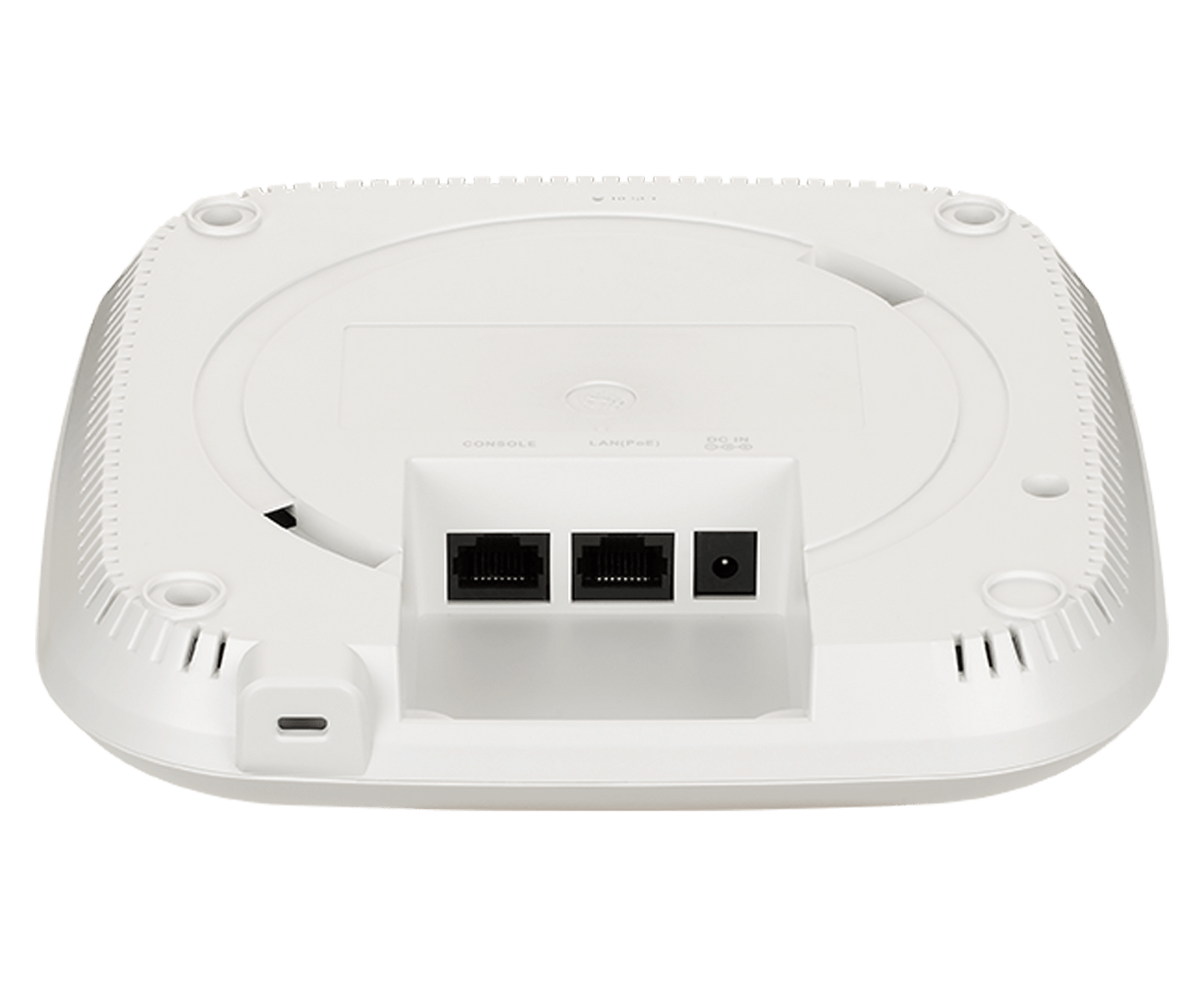

Nuclias Cloud-Managed AX1800 Wi-Fi 6 PoE Access Point - DBA-X1230P

Nuclias Cloud-Managed AX1800 Wi-Fi 6 PoE Access Point - DBA-X1230P

Regular price $349.99 CAD
Regular price $349.99 CAD Sale price $349.99 CAD
Sale Sold out
Shipping calculated at checkout.

Nuclias Cloud-Managed AX1800 Wi-Fi 6 PoE Access Point

The Wi-Fi 6 ready DBA-X1230P access point is on hand to provide unbeatable speeds, greatly increased capacity and interference-free coverage throughout businesses.

  • Centralized cloud-based management, with intuitive web and app-based interface
  • Wi-Fi 6 ready: delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards
  • MU-MIMO slices through congestion, reducing wait time for all users
  • Superior throughput with dual-band transfer speeds of up to 575 Mbps in the 2.4 GHz band and 1200 Mbps in the 5 GHz bands
  • Coverage is shared more efficiently over more users with Airtime Fairness
  • Band Steering intelligently manages users, pushing them onto the higher radio frequency when possible
  • Support for Power of Ethernet 802.3at means less wires, for cleaner and easier deployment
  • With Zero Touch Deployment, swift plug and play installation eliminates the need for on-site setup
  • Stay secure with WPA3 encryption
  • Power Supply 12 V / 2.5 A / IEEE 802.3at PoE (Note: this product does not ship with a power supply. Optional power adapter is sold separately)
  • Limited Lifetime Warranty

Harness the Power of Cloud Networking

This device is part of the Nuclias Cloud Solution. Businesses of any size and level of IT resources can reap all the benefits of Cloud Networking to boost productivity and enhance competitiveness.

  • Zero Touch Deployment
  • Hassle-Free Management
  • Unlimited Scalability

Dual-Band Wi-Fi That Boosts Business Performance

With the DBA-X1230P by your side, it’s all systems go. It is fully prepared to handle all day-to-day demands of SMBs. Equipped with Wi-Fi 6, there are massive performance improvements, as well as all the features of 11ac now available for the 2.4 GHz band too. Turbocharged speeds, plenty of bandwidth and simple central management make it the ultimate booster in productivity.

Beamforming Ensures Consistent Coverage, Even on The Move

Beamforming technology continuously optimizes the wireless signal, focusing it towards receiving devices and following them. This adaptive beamforming enhances spectral efficiency and link quality. Finally, with 2 x 2 MU-MIMO with two spatial streams, it slices through congestion offering all users a better Wi-Fi experience. Ideal for busy offices or places with users often on the move.

No-Wait Wi-Fi Even at Peak Time with MU-MIMO

Equipped with the latest 802.11ax MU-MIMO technology and 1800 Mbps throughput, delivering exceptional connectivity to more users and devices just got a lot easier. Your network will not balk, even at the busiest of times.

The DBA-X1230P is empowered with next generation Wi-Fi 6. Enhanced MU-MIMO with even more uplink and downlink streams serves more devices simultaneously. OFDMA dramatically increases transmission efficiency and 1024-QAM packs even more data bringing unadulterated speed increases of a searing 25%.

Wi-Fi 6 leverages all these features and more to create Wi-Fi with unparalleled performance.

Form Without Sacrificing Function

It can be hard to look good while still being functional. Yet the DBA-Series strikes the balance just right.

The smooth case in crisp white makes for an elegant design that can effortlessly fit into any setting.

Your Guests Online in No Time with a Captive Portal

With your dual-band Wi-Fi up and running, it is time to get everyone connected. A captive portal is an immensely easy method for getting users online quickly. Simplify further with Social Login so guests can get online whichever way suits them best.

And not only does it also increase brand recognition, but businesses can collect valuable data to better understand users.

Hit the Ground Running with Zero Touch Provisioning

The DBA-X1230P Nuclias Cloud-Managed Switch Series is deployed as a pre-managed, zero-configuration access point. No need to send out your most experienced engineer for every installation. With Nuclias' Zero-Touch Deployment, you can power-up the access points on site, plug them in, and remotely set up and manage them through Nuclias Cloud.

Complete Control over your Network’s Access

Complete control comes as standard with the DBA-X1230P. Combined with the Nuclias Cloud management software, a variety of the latest in network security and management tools are at your fingertips. You can rest assured that the best of the best are hard at work keeping your network protected and hitch free.

  • Supports WPA3™ - The latest WiFi security for more protection
  • RADIUS - Eliminate shared passwords with unique credentials for each employee
  • Customizable Captive Portal - Separate guest and employee access
  • MAC Filtering – Limit what devices can connect
  • Rogue AP Detection – Guard against unauthorized Access Point installation
  • Wireless LAN Segmentation – Better bandwidth utilization
  • Wireless Isolation – Limit what users access on the local network
  • Wireless Broadcast Scheduling – Automate when your network is available
  • SSID Broadcast Disabling – Hide your wireless for an extra layer of security

Peak Performance and Discreet Deployment with Power over Ethernet (PoE)

The DBA-X1230P’s Power over Ethernet function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

Perfect For

Convention Centers

With hundreds or even thousands of attendees, users and all their devices can maintain ultra-high data speeds, no matter how busy it gets.

Busy Shopping Centers

Shoppers are increasingly relying on connectivity to augment their shopping experience, while at the same time shop owners looking to automate more aspects of their stores through the use of IoT

Transportation Hubs

Peak time at any busy transport hub can subject even the best networks to intense strain. However, the DBA-X2830P can handle this intense demand to keep data flowing smoothly and securely.

Essential Network Management Tools At Your Fingertip

Manage your entire network using D-Link’s intuitive Nuclias Cloud Management platform. All aspects of your network are easy to reach through the highly powerful centralized platform.

Tasks such as segmenting the network, managing multiple devices simultaneously, enforcing security policies, and monitoring live network statistics remotely can be done anytime, anywhere.

Specifications

Dimensions 170 x 170 x 28 mm
Environment Indoor
2.4GHz Speed 575 Mbps
5GHz Speed 1200 Mbps
MU-MIMO and Tx beamforming Yes
Maximum Output Power 2.4G Hz :23 dBm / 5 GHz : 22 dBm
Mounting Wall/Ceiling
Interface 1 x 10/100/1000 Mbps Ethernet Port
PoE Mode 802.3at
