Description
The D-Link DWL-G630 wireless laptop adapter features 802.11g and 802.11b compatibility with WEP, WPA and 802.1x. This wireless laptop adapter provides high levels of wireless security for all your needs.
D-Link, the industry pioneer in wireless networking, introduces another performance breakthrough in wireless connectivity—the
D-Link AirPlus™ G series of high-speed devices.

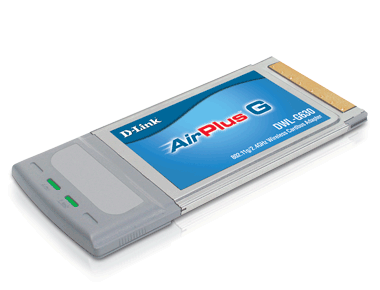

The D-Link AirPlus G DWL-G630 Cardbus Adapter is a wireless laptop adapter featuring the very latest in advanced wireless silicon chip technology including enhanced security to shield and protect your wireless communication from intruders. The DWL-G630 wireless laptop adapter also works with 802.11b standard wireless devices and when used with other D-Link AirPlus G products delivers throughput speeds capable of handling heavy data payloads.
The DWL-G630 wireless laptop adapter features WPA and 802.1x for wireless user authentication, providing you a much higher level of security for your data and communications.
The D-Link AirPlus G DWL-G630 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity profiles for those networks most often accessed.
The DWL-G630 is a powerful 32-bit Cardbus Adapter that installs quickly and easily into laptop PCs and when used with other D-Link AirPlus G products automatically connects to the network. Like all D-Link wireless adapters, the DWL-G630 can be used in Ad-Hoc mode to connect directly with other cards for peer-to-peer file sharing or in Infrastructure mode to connect with a wireless access point or router for access to the Internet in your office or home network.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
** WPA and 802.1x requires use of the Windows® XP Zero Configuration Utility.
Features
- Up to 54Mbps*
- Great for Video Streaming
- 802.11g Standard, 802.11b Compatible
- Increased Wireless Security with WPA and 802.1x**
Specifications
| Specifications | | Standards | | • | IEEE 802.11g | | • | IEEE 802.11b |
| | Bus Type | | | Wireless Signal Rates* with Automatic Fallback | | • | 54Mbps | | • | 48Mbps | | • | 36Mbps | | • | 24Mbps | | • | 18Mbps | | • | 12Mbps | | • | 11Mbps | | • | 9Mbps | | • | 6Mbps | | • | 5.5Mbps | | • | 2Mbps | | • | 1Mbps |
| | Security** | | • | WPA—Wi-Fi Protected Access (64-, 128-WEP with TKIP, MIC, IV Expansion, Shared Key Authentication) | | • | 802.1x | | • | 64/128-bit WEP |
| | Media Access Control | | | Wireless Frequency Range | | | Wireless Signal Range* | | • | Indoors: Up to 328 ft (100 meters) | | • | Outdoors: Up to 1312 ft (400 meters) |
| | Power Consumption | | | Modulation Technology | | • | Orthogonal Frequency Division Multiplexing (OFDM) |
| • | Complementary Code Keying (CCK) |
| | Receiver Sensitivity* | | • | 54Mbps OFDM, 10% PER,-68dBm) | | • | 48Mbps OFDM, 10% PER,-68dBm) | | • | 36Mbps OFDM, 10% PER,-75dBm) | | • | 24Mbps OFDM, 10% PER,-79dBm) | | • | 18Mbps OFDM, 10% PER,-82dBm) | | • | 12Mbps OFDM, 10% PER,-84dBm) | | • | 11Mbps CCK, 8% PER,-82dBm) | | • | 9Mbps OFDM, 10% PER,-87dBm) | | • | 6Mbps OFDM, 10% PER,-88dBm) | | • | 5.5Mbps CCK, 8% PER,-85dBm) | | • | 2Mbps QPSK, 8% PER,-86dBm) | | • | 1Mbps BPSK, 8% PER,-89dBm) |
| | Transmitter Output Power | | | Internal Antenna Type | | • | Dual Antenna Diversity Switching |
| | Operating Temperature | | • | 32°F to 131°F (0°C to 55°C) |
| | Humidity | | • | 95% maximum (non-condensing) |
| | Dimensions | | • | L = 4.64 inches (114.3mm) | | • | W = 2.13 inches (54mm) | | • | H = 0.34 inches (8.7mm) |
| | Weight | | | Warranty | |
|
* Maximum wireless signal derived from on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
** WPA and 802.1x requires use of the Windows® XP Zero Configuration Utility.
